Depaneling machines from SCHUNK Electronic Solutions are high-performance machines for the depaneling of single circuit boards with electronic components. The cutting principles we use are especially fast, reliable, and low-stress, and ensure maximum productivity and the best cutting quality.

Depaneling machine for separating circuit boards

SCHUNK Electronic Solutions is setting standards in the field of depaneling technology

Our focus in the machine area is on the modern processes of electronic assembly production. Our systems and devices meet the highest requirements of increasing miniaturization, the use of highly sensitive components and the increasing quality demands on printed circuit boards.

From product selection to workpiece carrier solutions and optimization of the milling parameters to commissioning - SCHUNK Electronic Solutions offers solutions for the entire depaneling spectrum. The focus is on the modern processes of electronic assembly production. Our systems and devices meet the highest requirements of increasing miniaturization, the use of highly sensitive components and the increasing quality demands on printed circuit boards.

Milling area 500 mm x 600 mm for large standard or longboards

New: Stand-alone depaneling machine SAR-1300 Mono-Smart or SAR-1700 with extra large working area

SCHUNK Electronic Solutions is launching two panel separators with large installation spaces: the SAR-1300-Mono-Smart and the SAR-1700. The devices mill and saw individual circuit boards from complete circuit boards (panels) – the maximum panel size is 600x500 millimeters.

Learn more

SAR-1700 wird ein Roboterarm mit einem SCHUNK Co-act Greifer EGP-C

The first collaborative loading of depaneling machines

With the unique automation solution from SCHUNK, the productivity of depaneling machines is significantly increased.

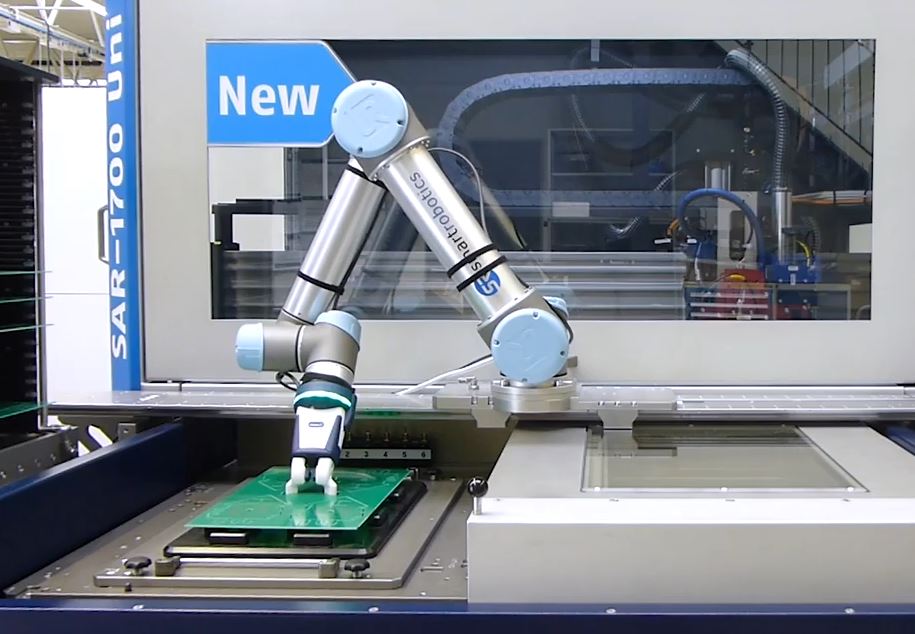

A robot arm with a SCHUNK Co-act gripper EGP-C is attached to the double shuttle of a SAR-1700.

Robot reaches into the magazine and removes the panel
Panel is inserted into the machine
Robot arm closes the door and presses the start button
After the panels have been separated, individual parts are placed on a conveyor belt, a blister pack or in a downstream automation system
Process starts again

Only the panel magazine still has to be attached manually. A single employee can therefore look after up to five machines at the same time.

Learn more

The most precise stand-alone depaneling machines with the most variable workpiece carrier solutions worldwide

100% variability from batch size 1 to large series

This SAR-1300 series is designed for small to large batch sizes with low to high product variation. Customers benefit from process reliability, low power consumption and short cycle times. Thanks to linear motor axes and modern control technology, the milling accuracy is +/- 0.1 millimeters. And despite this performance, our universal depaneling machines are energy-saving. The technical availability is up to 99.8 percent.
