Microvalve technology

Mikroventil

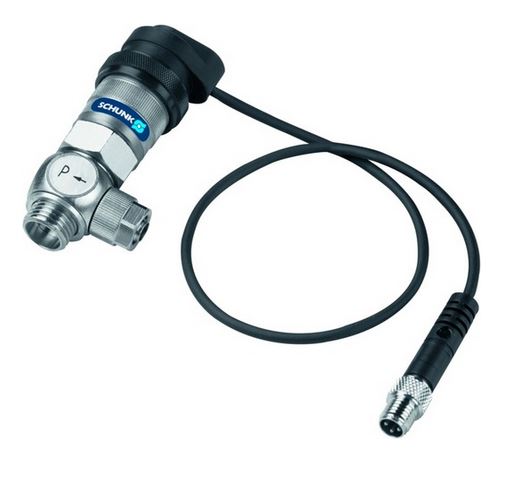

The SCHUNK add-on valve consists of an electrical distribution box and two 3/2-way micro valves that are screwed directly into the respective actuator.

Area of ​​Application
The add-on valves are used on a wide variety of SCHUNK gripping modules.

Advantages – Your Benefits
Increased efficiency and shortened cycle times
due to lower compressed air consumption
Time and cost savings
due to reduced assembly effort and shorter cables to the actuator

Options and Special Information
Pre-assembled Cables
Both the valves and the optionally available sensors are equipped with pre-assembled 30 cm cables that are connected to the distribution box with a three-pin M8 connector.

ABV-MV

Valves and fittings

Valve control unit VCU

Valve control unit with integrated microvalves and control electronics
Ventilsteuereinheit VCU
more

Valve Control Unit (VCU)

Description:

  • Valve control unit with integrated microvalves and control electronics

Area of ​​application

  • For use in clean and slightly dirty environments and in conjunction with the Pick & Place Unit PPU-P

Advantages – Your Benefits

  • Completely ready-to-install solution, thus minimal piping effortreduces commissioning times and costs

  • The typical sequence programs for Pick & Place movements are already storedIncreases process reliability and simplifies commissioning

  • Valves are mounted directly behind the handling component
    reduces air consumption to a minimum

  • Direct integration of the valves into the overall system
    for the shortest cycle times and thus higher productivity

  • Optionally up to nine 3/2-way valves possible
    for maximum application flexibility

  • Control via PROFIBUS, CAN, or digital I/O possible
    for optimal adaptation to your application

Valve block VB

Components for industrial automation in the usual high SCHUNK quality
Ventilblock VB
more

Valve Block VB

Description:

  • Component for industrial automation in the usual high SCHUNK quality

Area of ​​application

  • For a wide variety of areas of industrial automation

Advantages – Your Benefits

  • Robust construction for long-term, reliable use. Proven many times in industrial automation. Quality from the competence leader for gripping systems and clamping technology.

Add-on valves ABV-MV

The SCHUNK add-on valve consists of an electrical distribution box and two 3/2 micro valves that are screwed directly into the respective actuator.
Anbauventile ABV-MV
more

Valve Control Unit (VCU)

Description:

  • The SCHUNK add-on valve consists of an electrical distribution box and two 3/2-way micro valves that are screwed directly into the respective actuator.

Area of ​​Application

  • The add-on valves are used on a variety of SCHUNK gripping modules.

Advantages – Your Benefits

  • Increased efficiency and shortened cycle times Cycle timesdue to lower compressed air consumption

  • Time and cost savingsdue to reduced assembly effort and shorter cables to the actuator

Options and special information

  • Pre-assembled cablesBoth the valves and the optionally available sensors are equipped with pre-assembled 30 cm cables that are connected to the distribution box with a three-pin M8 connector.
